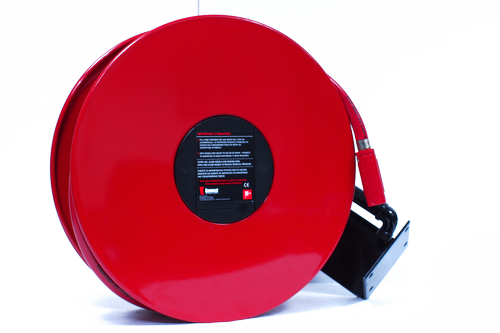

Geomast Automatic Hose Reel





Geomast fire hose reels provide a very effective fire fighting tool with a continuous supply of water available immediately. Automatic hose reels are available with an internal valve built into the hose reel unit, the internal valve will open fully after three revolutions of the hose reel as the hose is pulled out. The automatic hose reel valve will close when the hose is wound back onto the reel. Geomast automatic hose reels are available with a quick installation mounting bracket which allows installation to be completed by one person.


These hose reels are designed and manufactured for wide range of applications such as for fixed wall installation, fire cabinets, wall mounted swinging operation, door mounting or fixed installations.



Geomast hose reels can be used without alteration for mounting with inlet to left/right or top/bottom of the hose reel, also it is fitted with specially designed glandless type drip proof seal.This gives maximum flexibility to suit an extensive range of architectural and installation requirements and makes it easy to install.



Geomast hose reels are designed and manufactured to according to EN671 and EN694



 Key Features

  • Compact design with excellent flow characteristics
  • Supplied with Wall-mounting bracket
  • This fire hose reel will open fully within 3 revolutions of the reel.
  • Geomast jet / spray /shut-off nozzle
  • Ready for surface or recess installations
  • Corrosion resistant coating
  • The effective throw range of discharge at 0.2 MPa (2 bar) pressure is 10 meters in JET setting

  • Maintenance free

  • Drum plate is finished in red polyester electrostatic powder coated
  • Fixed reels available with flexible inlet piping
  • Full Range of Hose Reel Cabinets

Technical Specifications

  • Hose length : 30 m
  • Hose diameter : 19 mm or 25 mm diameter red hose, designed to standard EN 694
  • Hose Reel Depth: 270 mm
  • Drum diameter: 550 mm
  • Gross weight (without hose) : 14.5 kg
  • Paint finishing : Red Polyester - RAL3000
  • Pressure Test: 12 bar
Please contact us for any documents and information needed.
